The collection of ship data, general status messages, and alarms is an essential part of a modern alarm and security system. The constant increase in the complexity and volume of the information generated places ever greater demands on the performance of a data collection system. The AHD 1300 G4 Slim compact PC was developed specifically for shipbuilding and is ideally suited to meet these requirements.

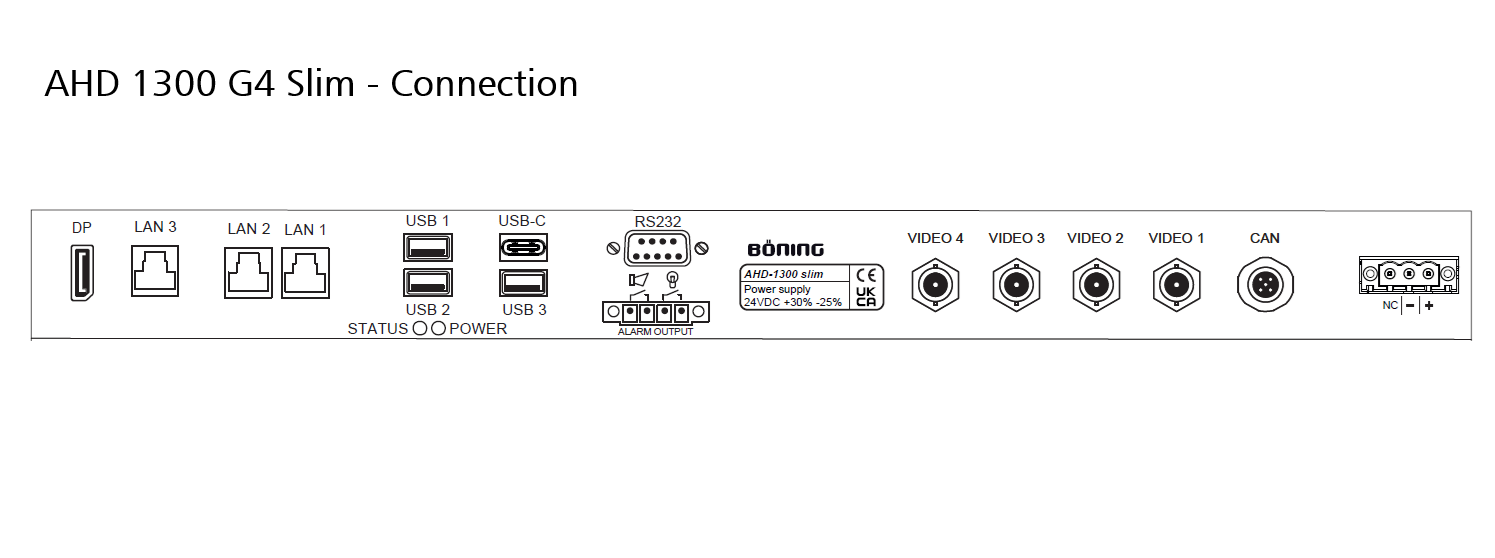

The AHD 1300 Slim (G4) is the successor to the proven AHD 1300 Slim and is now equipped with a 4k video output and additional interfaces. As before, there are no mechanically moving components such as hard drives or fans. The shock-resistant design with passive cooling system ensures maximum operational reliability. Two LAN interfaces are used for integration into the ship's Böning system. A connected monitor can be remotely controlled via the CAN interface. All interfaces are connected individually via standardized connectors. The Embedded PC AHD 1300 Slim is designed for wall and DIN rail mounting. With a power supply of 24 V DC, the devices are ideally suited for use on ships. The powerful PCs ensure safe and reliable operation even under extreme conditions.
The visualization system with a closed operating system works completely independently. Advantage: No firewalls or virus scanners are required, and the configuration cannot be accidentally changed. AHD 1300 Slim is always used in combination with an AHD DPU 9 data processing station or an AHD 12XX panel PC.
