AHD 652

6.5” color display with foil front without touch screen

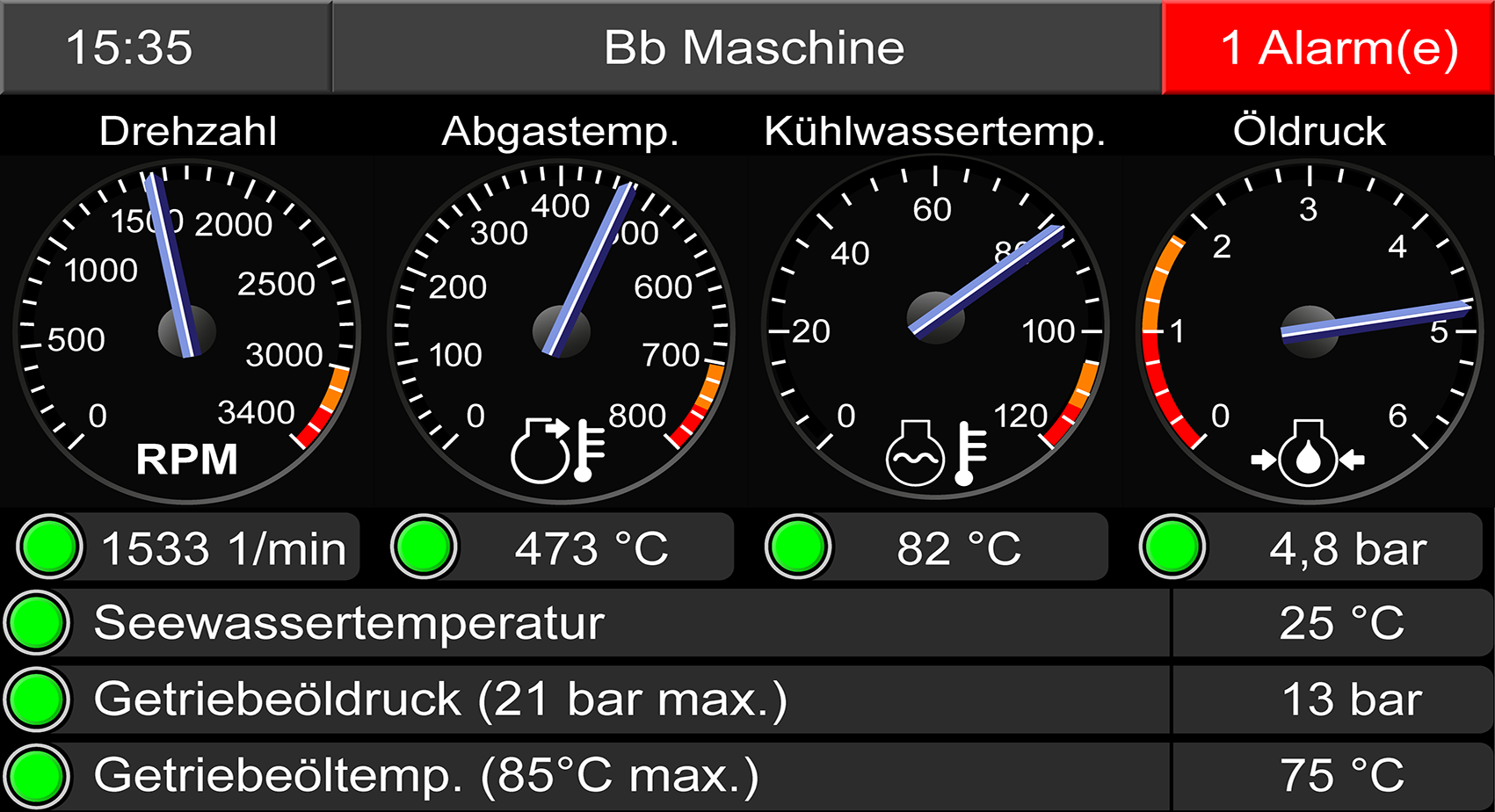

The AHD 652 is the third generation of our proven 6.5" display panel. The display impresses with its individual graphical design and can be used as a display panel for motor or generator monitoring, as a main display for smaller ship alarm systems or as a secondary display for larger systems. The device is suitable for outdoor use and can be used in classified systems.

The AHD 652 is connection-compatible with its predecessor models, but impresses with better resolution and higher brightness. The display unit of the new AHD 652 is firmly glued (bonded) to the glass, so that fogging prevents the glass and significantly improves readability even in adverse conditions.

  • 6.5” color display, remote control available as an option
  • High brightness for best readability even in sunlight
  • Compact design for control station, panel, or box installation
  • Protection class IP 67 (front side, rear side IP 55) for indoor and outdoor use
  • Data communication via CAN bus
  • Graphical visualization can be individually adapted via configuration software

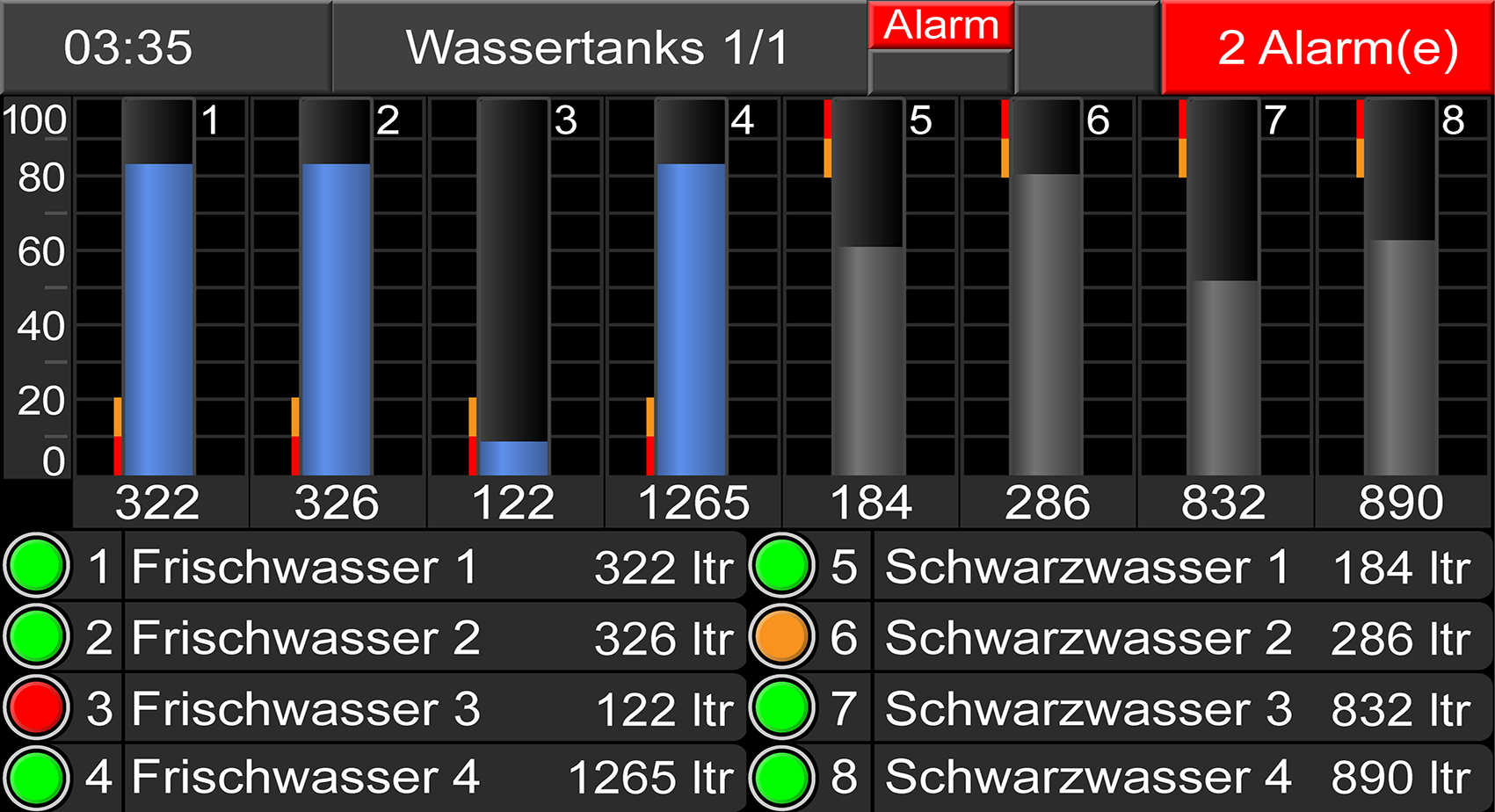

  • Tabular alarm page with all pending alarms
  • Automatic backlight dimming
  • Interface for GPS receivers, e.g. for displaying ship speed over ground.
