AHD-S 201

Pressure sensors for various media and measurement ranges

The AHD-S 201 hydrostatic level probe was developed to record fill levels in service and product storage tanks and, due to certification in accordance with DNV/GL, is ideal for shipbuilding and offshore applications. Their operating temperature range of up to 125°C and use in hazardous areas make it possible to record the pressure of a wide variety of liquids under extreme operating conditions.

The basis of the AHD-S 201 is a capacitive ceramic sensor element developed in-house, which is characterized by its high overload capacity and media resistance. Preferred areas of application include ballast tanks, monitoring the position or draught of a ship, or level monitoring of tanks.

‍

Reliable hydrostatic level probe for a wide range of marine and offshore applications, housing material: 1.4404 (optional CuNiFe)
Precise submersible probe (39.5 mm) with ceramic membrane
Standard accuracy = 0.25%/0.10% FSO (IEC 60770)

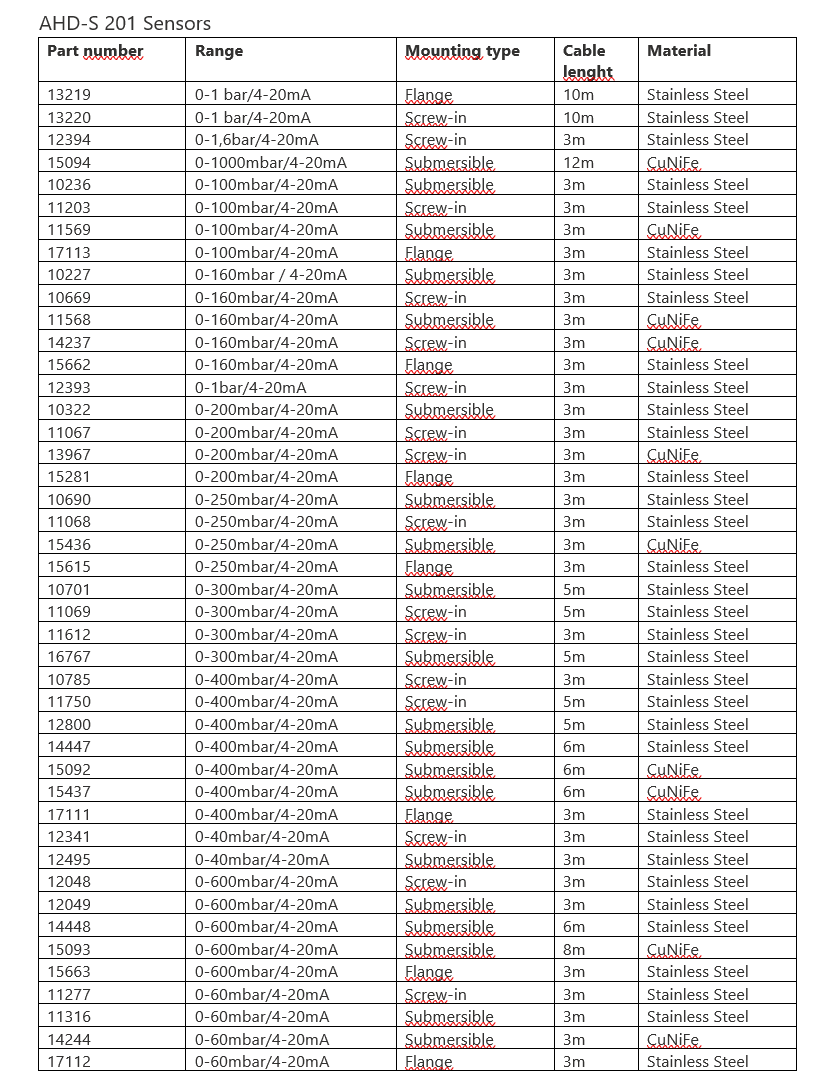

Dipping, flange and screw-in design
Nominal pressure ranges from 0... 40 cmWs to 0... 200mWS (0... 40 mbar to 0... 20 bar)
Operating temperature range up to 125°C
High overload capacity and chemical resistance
Low temperature error, very good linearity, high long-term stability
Certified according to DNV/GL
Ex version option (only for 4... 20 mA/2-wire)
Optional: cable protection; Al2O3 99.9% membrane; customer-specific versions
